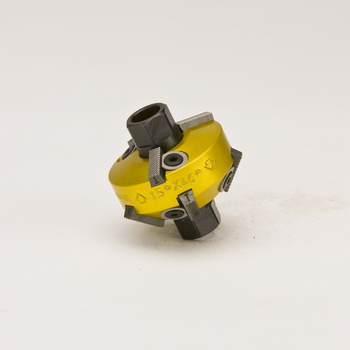

CU621 Standard Series Valve Seat Cutter 38mm 15x46 deg.
| Part Number | CU621 |
|---|---|
| Name | Standard Series Valve Seat Cutter 38mm 15x46 deg. |
| Price | $163.75 |
| Diameter | 38mm |
Side A
| Angle | 15° |
|---|---|
| Blade Count | 3 |
| Blade Part | TC251 |
| Operating Range Minimum | 35mm |
| Operating Range Maximum | 45mm |
| Blade Adjustment Minimum | 14.7mm |
| Blade Adjustment Maximum | 47mm |
Side B
| Angle | 46° |
|---|---|
| Blade Count | 5 |
| Blade Part | TC251 |
| Operating Range Minimum | 35mm |
| Operating Range Maximum | 47mm |
| Blade Adjustment Minimum | 20.6mm |
| Blade Adjustment Maximum | 47mm |
