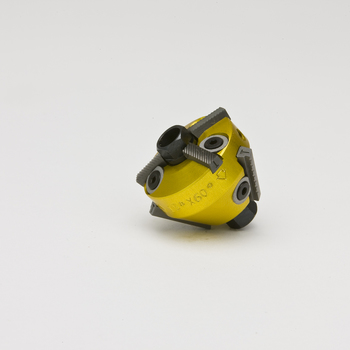

CU124 Small Series Valve Seat Cutter 33.3mm 15x60 deg.
- Works for most power equipment engines in "L-head" or valve-in-block configuration (Briggs, Kohler, Honda, etc)
| Part Number | CU124 |
|---|---|
| Name | Small Series Valve Seat Cutter 33.3mm 15x60 deg. |
| Price | $124.50 |
| Diameter | 33.3mm |
Side A
| Angle | 15° |
|---|---|
| Blade Count | 3 |
| Blade Part | TC251 |
| Operating Range Minimum | 32.5mm |
| Operating Range Maximum | 39.5mm |
| Blade Adjustment Minimum | 10.9mm |
| Blade Adjustment Maximum | 41.7mm |
Blades extend beyond cutter body, even when adjusted to innermost position.
Side B
| Angle | 60° |
|---|---|
| Blade Count | 3 |
| Blade Part | TC254 |
| Operating Range Minimum | 32.5mm |
| Operating Range Maximum | 44.5mm |
| Blade Adjustment Minimum | 15.9mm |
| Blade Adjustment Maximum | 44.5mm |
Blades extend beyond cutter body, even when adjusted to innermost position.
