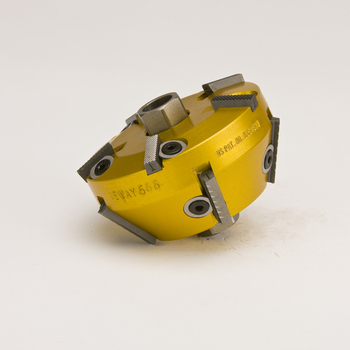

CU666 Standard Series Valve Seat Cutter 57.2mm 15x60 deg.

Part Number CU666
Name Standard Series Valve Seat Cutter 57.2mm 15x60 deg.
Price $193.50
Diameter 57.2mm

Side A

Angle 15°
Blade Count 5
Blade Part TC251
Operating Range Minimum 54mm
Operating Range Maximum 64mm
Blade Adjustment Minimum 26.7mm
Blade Adjustment Maximum 65.9mm

Side B

Angle 60°
Blade Count 5
Blade Part TC254
Operating Range Minimum 54mm
Operating Range Maximum 68mm
Blade Adjustment Minimum 34.3mm
Blade Adjustment Maximum 67.9mm
