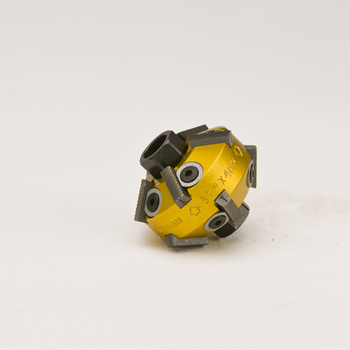

CU622H Standard Series Valve Seat Cutter 38mm 31x46 deg. (Short Hub)

  • This cutter has a short hub. Important for work on Harley-Davidson heads and some Brit bikes.
Part Number CU622H
Name Standard Series Valve Seat Cutter 38mm 31x46 deg. (Short Hub)
Price $193.50
Diameter 38mm

Side A

Angle 31°
Blade Count 5
Blade Part TC251
Operating Range Minimum 35mm
Operating Range Maximum 45mm
Blade Adjustment Minimum 17.1mm
Blade Adjustment Maximum 47mm

Side B

Angle 46°
Blade Count 5
Blade Part TC251
Operating Range Minimum 35mm
Operating Range Maximum 47mm
Blade Adjustment Minimum 20.6mm
Blade Adjustment Maximum 47mm
