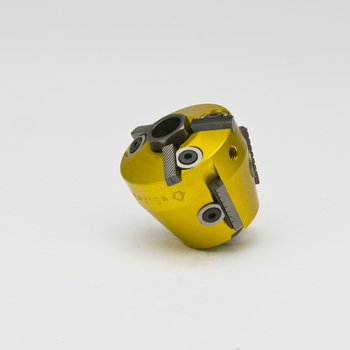

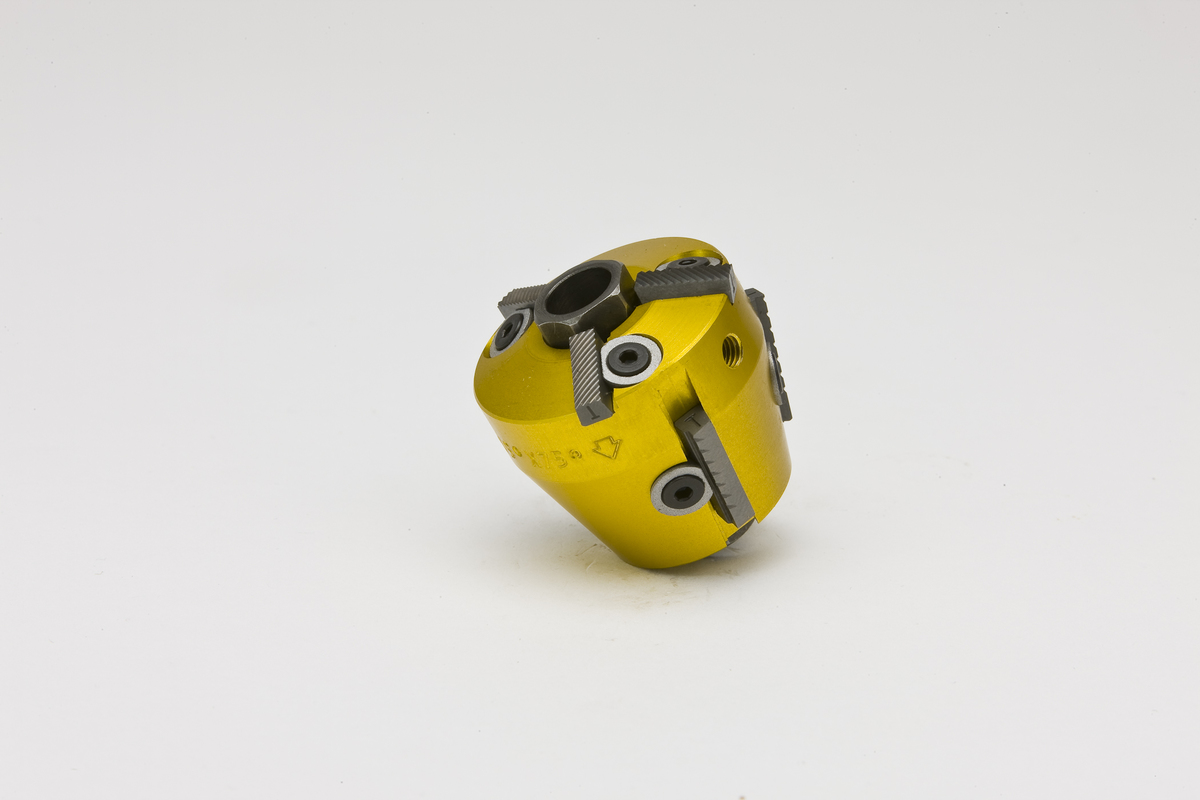

CU217 Standard Series Valve Seat Cutter 38mm 15x75 deg.

Part Number CU217
Name Standard Series Valve Seat Cutter 38mm 15x75 deg.
Price $118.50
Diameter 38mm

Side A

Angle 15°
Blade Count 3
Blade Part TC251
Operating Range Minimum 34.5mm
Operating Range Maximum 45mm
Blade Adjustment Minimum 9.7mm
Blade Adjustment Maximum 47mm

Side B

Angle 75°
Blade Count 3
Blade Part TC254
Operating Range Minimum 34.5mm
Operating Range Maximum 45mm
Blade Adjustment Minimum 28.6mm
Blade Adjustment Maximum 45.3mm
