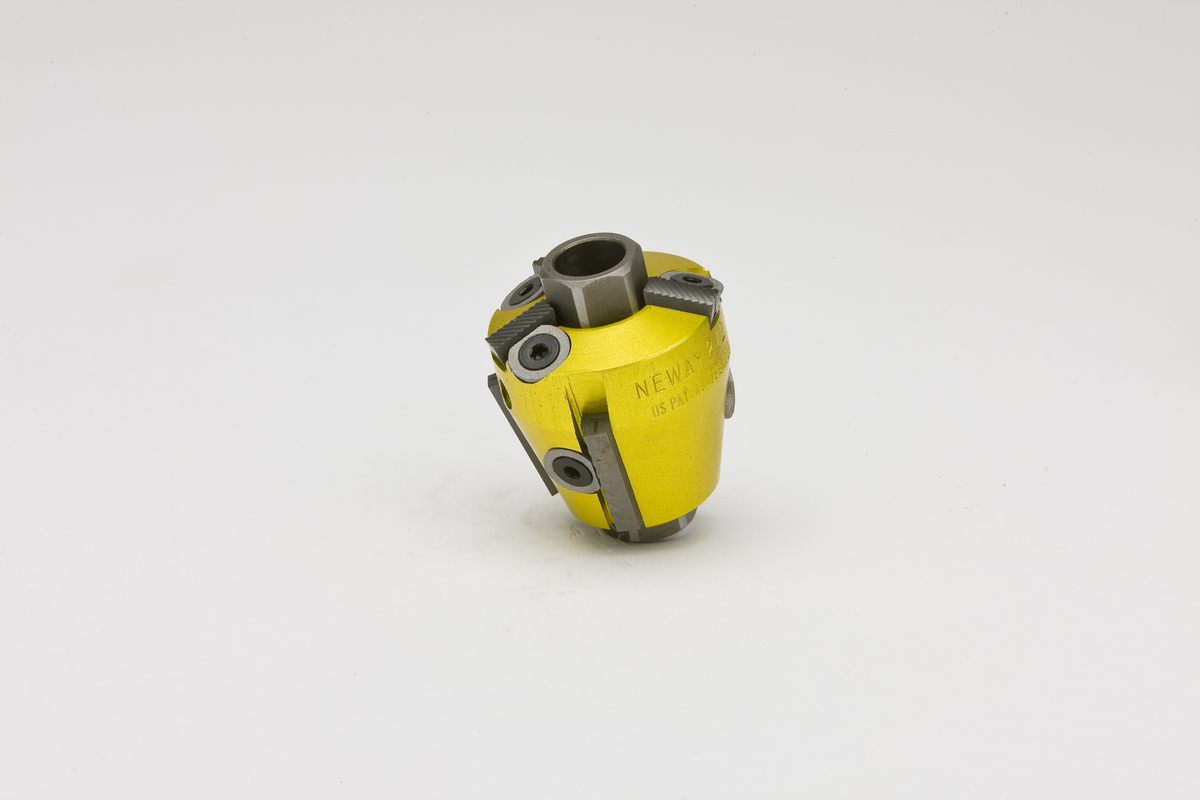

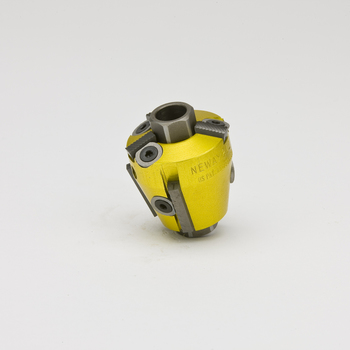

CU212 Standard Series Valve Seat Cutter 31.8mm 15x75 deg.

Part Number CU212
Name Standard Series Valve Seat Cutter 31.8mm 15x75 deg.
Price $116.50
Diameter 31.8mm

Side A

Angle 15°
Blade Count 3
Blade Part TC250
Operating Range Minimum 28.5mm
Operating Range Maximum 35mm
Blade Adjustment Minimum 9.7mm
Blade Adjustment Maximum 37.1mm

Side B

Angle 75°
Blade Count 3
Blade Part TC254
Operating Range Minimum 28.5mm
Operating Range Maximum 38.5mm
Blade Adjustment Minimum 21mm
Blade Adjustment Maximum 38.7mm
